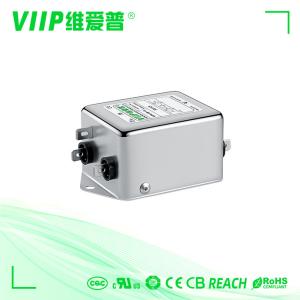

Single Phase two-stage EMI Filter with enhanced performance For Alarms Security system 20A
Quick Detail:
| Item |
Power line EMI Filter |
| Model |
VIP4-1B-20 |
| Transfer Function |
Low Pass |
| Package Type |
Surface Mount |
| Nominal Center Frequency |
150K-30MHZ |
| Insertion Loss |
60~90dB |
| Input Impedance |
50Ω |
| Rated Voltage |
110V/250V |
| Rated Current |
0.5~300A |
| Environmental Temperature |
40°C |
General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument
Specifications for single phase emi filters:
General purpose AC filters with good attenuation frequency range 150KHz-30MHz
VIP4 -1A and VIP4 -1B series are one - stage commonmode filters with almost the same filtering fleet, only slight differen different current
Compact structure, high performance-cost ratio, easy to install,safe and reliable
High voltage versions above 380VAC are also available
tabulates
| Part No. |
Rated Current [A] |
250VAC/50Hz @ 20C
Leakage Current [mA] |
Physical Dimensions |
Electrical Schematics |
Terminals |
Weight [g] |
| screw |
terminal block |
wires |
| VIP1-1A-01 |
1A |
<0.5mA |
Fig 1 |
Fig 1 |
- - - |
- - - |
0 |
65 |
| VIP1-1A-03 |
3A |
<0.5mA |
Fig 1 |
Fig 1 |
- - - |
- - - |
0 |
65 |
| VIP1-1A-06 |
6A |
<0.5mA |
Fig 1 |
Fig 1 |
- - - |
- - - |
0 |
65 |
| VIP1-1A-10 |
10A |
<0.5mA |
Fig 2 |
Fig 1 |
- - - |
0 |
- - - |
75 |
| VIP4-1B-06 |
6A |
<1.0mA |
Fig 3/Fig4 |
Fig 2 |
M4 |
0 |
- - - |
140 |
| VIP4-1B-10 |
10A |
<1.0mA |
Fig 3/Fig4 |
Fig 2 |
M4 |
0 |
- - - |
170 |
| VIP4-1B-20 |
20A |
<1.0mA |
Fig 3/Fig4 |
Fig 2 |
M4 |
0 |
- - - |
170 |
| VIP4-1B-30 |
30A |
<1.0mA |
Fig 5 |
Fig 2 |
M6 |
- - - |
- - - |
320 |
| VIP4-1B-50 |
SOA |
<2.0mA |
Fig 5 |
Fig 2 |
M6 |
- - - |
- - - |
600 |
| VIP4-1B-100 |
100A |
<2.0mA |
Fig 5 |
Fig 2 |
M8 |
- - - |
- - - |
1380 |
| VIP4-1B-150 |
150A |
<2.0mA |
Fig 5 |
Fig 2 |
M10 |
- - - |
- - - |
1900 |
| VIP4-1B-200 |
200A |
<2.0mA |
Fig 5 |
Fig 2 |
M10 |
- - - |
- - - |
1900 |
Applications:
White household
Smart home
Smart terminal
Power supply
Power & energy
Electrical & electronic equipment
Consumer goods
medical device
datacome equipment
Sample
Sample Fee: Negotiate
Sample Time: 3~5 days
Payment
---Payment terms: Western Union, T/T
---Please remember to leave the correct contact information for delivery.
