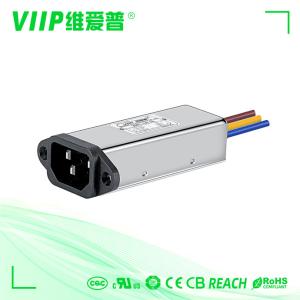

3A 60Hz IEC EMI Filter For Small Medium Machines Male Socket With Wires
Quick Detail:
| Item | IEC Filter |
| Model | IEC Filter VIP-1A |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 150K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 110V/250V |
| Rated Current | 1~10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1500VDC |
| Line to Ground | 1500VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 5pcs |
| Port | Shenzhen |
| Leading Time | 5~15 days |
Description:
specially designed for standard IEC connector ,fast and simple installation,highly cost effective
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C
Leakage Current [mA] | Physical Dimensions | Electrical Schematics | Terminals | Weight [g] |
| screw | terminal block | wires |
| VIP1-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | 0 | - - - | - - - | 45 |
| VIP1-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | 0 | - - - | - - - | 45 |
| VIP1-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | 0 | - - - | - - - | 46 |
| VIP1-1A-10 | 10A | <0.5mA | Fig 1 | Fig 1 | 0 | - - - | - - - | 47 |
| VIP1-1A-15 | 15A | <3.0mA | Fig.2 | Fig 1 | - - - | 0 | - - - | 355 |
| VIP1-1A-16 | 16A | <3.5mA | Fig.3 | Fig 1 | - - - | - - - | 0 | 355 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
Applications for emi emc filter:
Widely used for telecommunication equipment ,medical equipment ,instruments and meters ,household small tools ,test and measurement equipment ,electronic equipment requiring connection of standard plug
